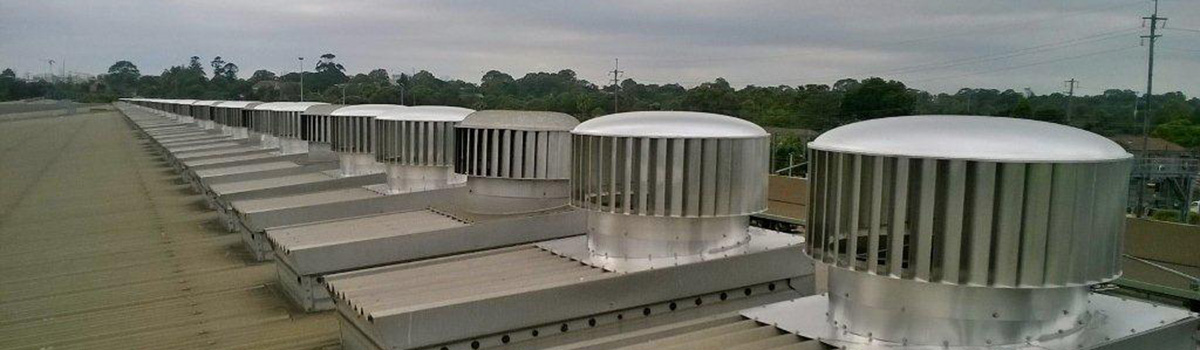

Hurricane Fire Rated (FR) natural ventilator

For over 25 years, the Hurricane® range vertical vane natural ventilation technology has been built to endure the tough climatic conditions and operating environments. Bradford Ventilation products are designed, engineered and manufactured at its ISO9001 accredited facility in Seven Hills, Australia.

Hurricane was the first industrial ventilator to incorporate vertical vane design which tests at University of Technology Sydney have shown to be have an improved co-efficient of discharge (Cd) compared to similar sized traditional spherical vents.

Hurricane range of Special Variations ventilators such as fire rated (FR) ventilator provides continuous ventilation and smoke release capability in the event of a fire. It has been tested by CSIRO and meets the fire resistant test to AS 1668.1-1998. The use of ventilation and air conditioning in buildings, Part 1: Fire and smoke control in multi-compartment buildings Section 4.8. Smoke-Spill fan. The operation of FR also does not interfere with Early Suppression Fast Response sprinkler systems.

View our FR case study here

Features and benefits

Features and Benefits

  • Advantages versus traditional pneumatically released ventilators include both constant ventilation and smoke release capacity, which will be boosted by the buoyancy effect of rising hot air
  • Does not interfere with Early Suppression Fast Response sprinkler systems
  • Responsive reaction to smoke emission
  • Meets the fire resistant test to AS 1668.1-1998. The use of ventilation and air conditioning in buildings, Part 1: Fire and smoke control in multi-compartment buildings Section 4.8. Smoke-Spill fan
  • Unique, in-house Australian designed glass reinforced polyphenylene sulphide use in critical components to provide resistance to chemical and thermal attacks
  • Specially designed and machined shaft to cater for metal expansion due to heat
  • Uniquely formulated bearing grease, to Bradford Ventilation specification, for potential high-heat application
  • Improved co-efficient of discharge (Cd) compared to similar sized traditional spherical vents
  • Lightweight design entails crane-life might not be necessary thus reducing overall installation cost
  • Variable pitch throat design can adapt to most roof angles
  • Higher flow coefficients than comparable sized traditional spherical vents
  • Design and tested to Australian Standards AS4740
  • Available in 900mm throat sizes only
  • Mill finish or power coated option to match most Colorbond® colours

Bradford Ventilation offers a service to help select the right size, number, type of vents is specified according to AS4740. Click to enquire or contact your account manager or contact our office.

Accessories
Colour
Specifications
Warranty

Product Suitability

Always check product suitability and limitations of use prior to selection - refer to the Product Technical Statement (PTS) available online.
